3" New Construction ICAT Housing H3N-ICAT-GU10

3" New Construction ICAT Housing H3N-ICAT-GU10

$15.00 CAD
$15.00 CAD
In-Store Pick-up Only Sale Sold out

96 in stock

DESCRIPTION
Small aperture housing designed for new construction. Thermally protected, IC rated specification grade recessed housing.  Accommodates up to 50W Halogen & LED lamps. Furnished with preinstalled adjustable bar hangers. Junction box is provided with for 1/2” Kos, one 3/4” KO and four Romex knockouts with strain relief.

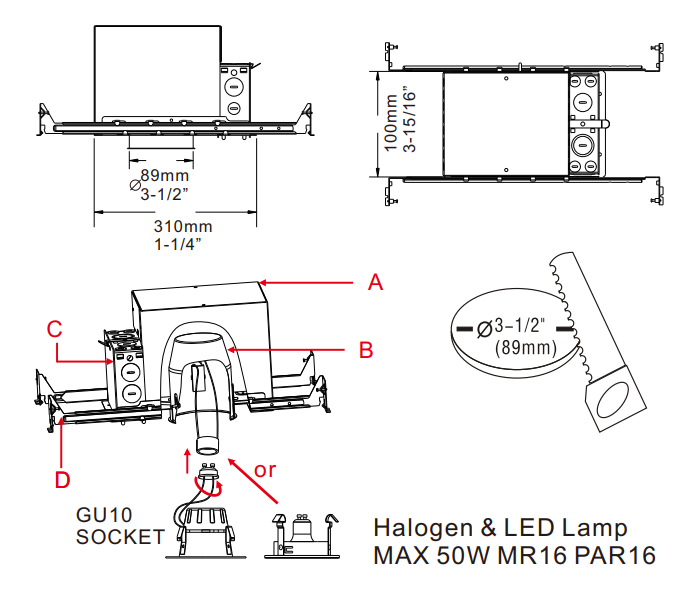

SPECIFICATION

 A. OUTER HOUSING
  • Die-formed aluminum construction for maximum heat dissipating air chamber on top of the housing.
  • Junction box could be accessed from inside and outside housing.
B. INNER HOUSING
  • Deep-drawn single piece aluminum construction for maximum heat dissipation and rust protection.
  • Adjusts vertically in plaster frame to accommodate 1/2”to 1-3/8” ceiling
C. BAR HANGERS
  •  Preinstalled bar hangers allow housing to be positioned and locked at any point within a 24” joist span and can be shortened for 12” joists. They are designed to be hammered directly without using nails or screws and could be fit onto T-bar spline for easy installation and quick alignment.
D. JUNCTION BOX
  • UL listed for through- branch circuit wiring and has four 1/2” Kos, one 3/4” KO and four Romex knockouts with strain clamps, 4 in 4 out.
FEATURES
  • Thermally protected IC Housing.
  • Dependable, favorable design and effortless installation
  • 7-1/4” height allows use in 2” x8” joist construction.
  • Wire through junction box.
  • Adjustable Socket bracket.
  • Preinstalled socket cap provides electrical contact protection against dust, paint and over spray.
  • Special screw on the frame locks bar hangers in place which prevents the housing from any movement once installed.
OPTION
  • 1. AIR-SHUT- Gasket to prevent air flow from heated or air conditioned spaces. Heated or air conditioned spaces.
  • Meets all national air flow requirements.



UL and C-UL listed
For Damp location
For Feed-through wiring
For direct contact with insulation

H3N-ICAT-GU10 Specification
