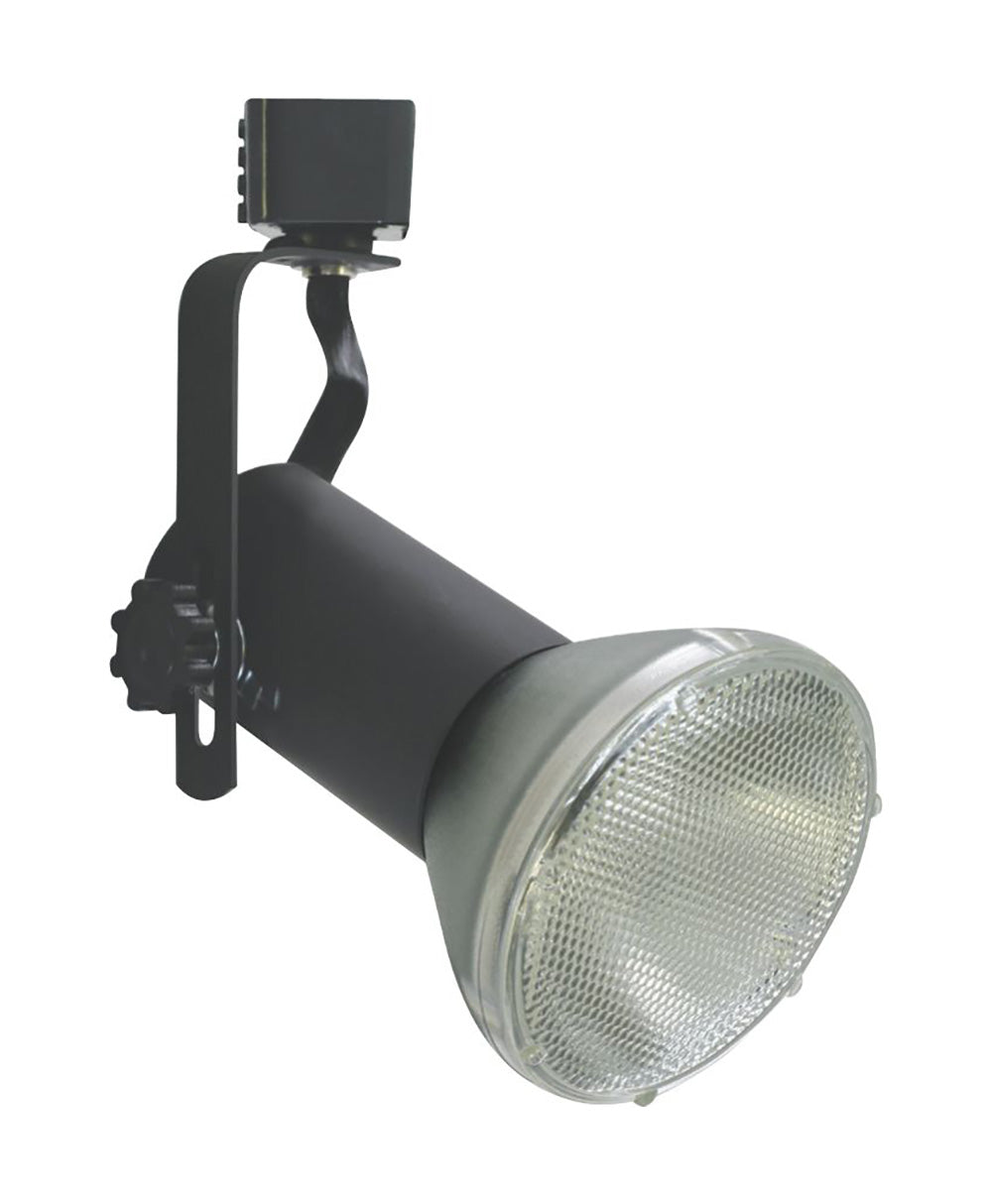

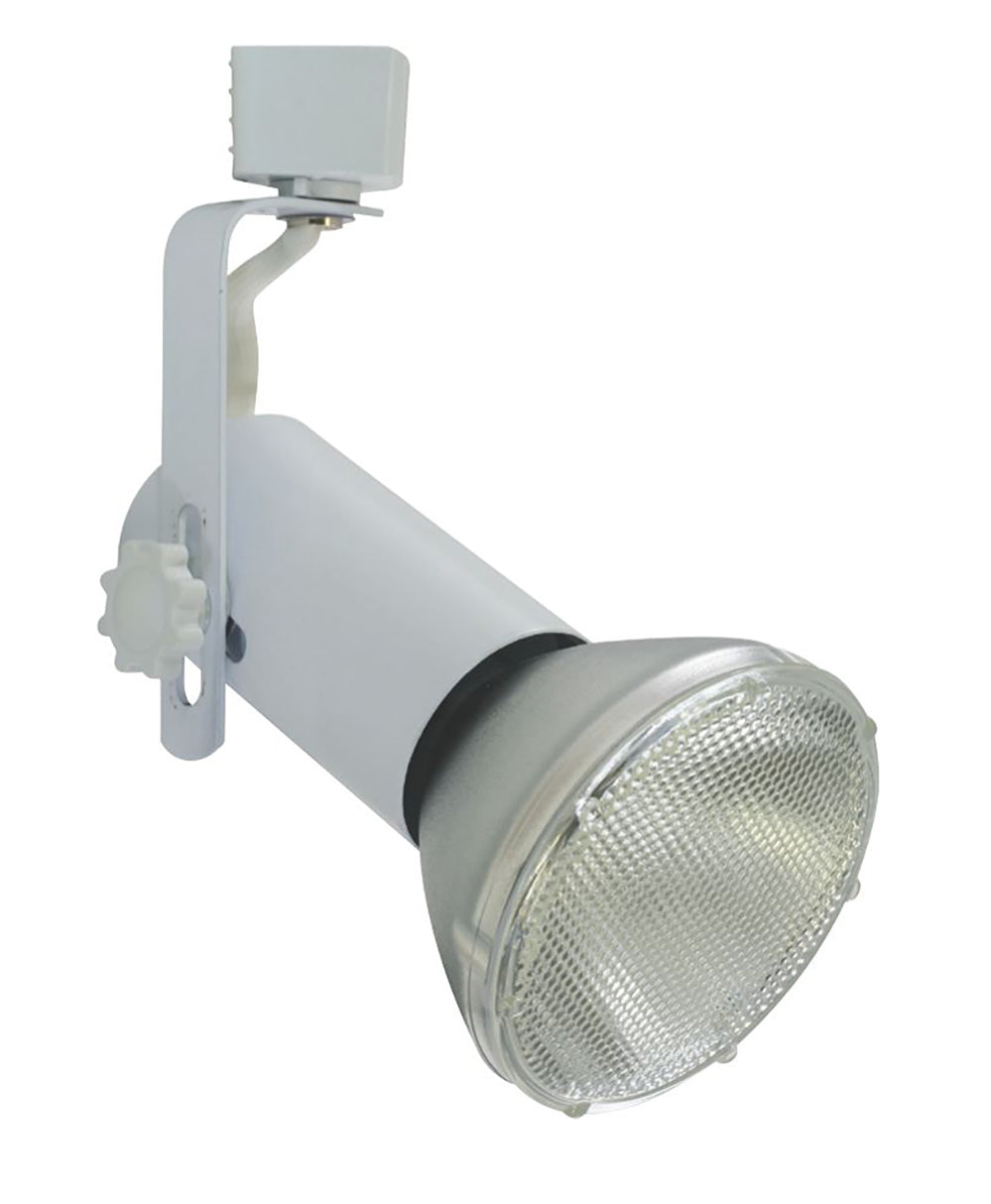

Universal Line Voltage Track Fixtures JT-190J

The adjustable JT-190J Universal Lamp Holder is designed for PAR38/PAR30/PAR20/R40/R30/R20 light sourcing. The JT-190J is a rear-loading gimbal track fixture that provides a directional light source for specific aiming and ensures a secure lock on the angle position.

Note:  Light Bulb and Track accessories sold separately. This track head only matching with 2 Wire Juno system tracks and track accessories.

• Adjustable up to 90 degrees from vertical and 330 degrees rotational.
• High strength stainless steel electrical contacts.
• Suitable for dry location.
• cULus listed
• Low profile, aesthetic design

Installation

• Push the top portion of the track head into the slot of the linear track section
• Turn the 2-copper conductors 90 towards the ground groove on the track section
• Rotate the adapter 90 to lock the track head into track section
• Pull down the adapter's locking tab.
