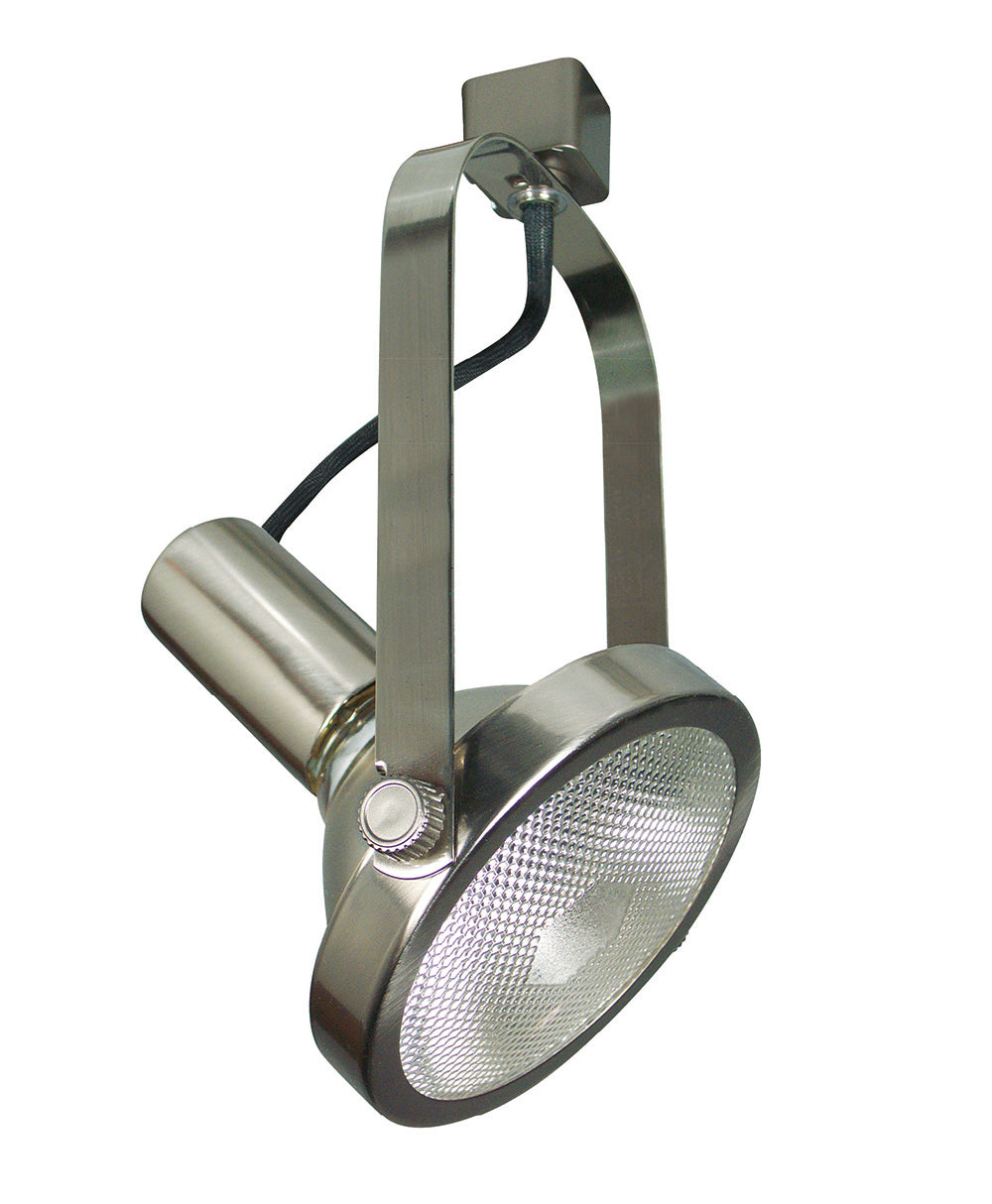

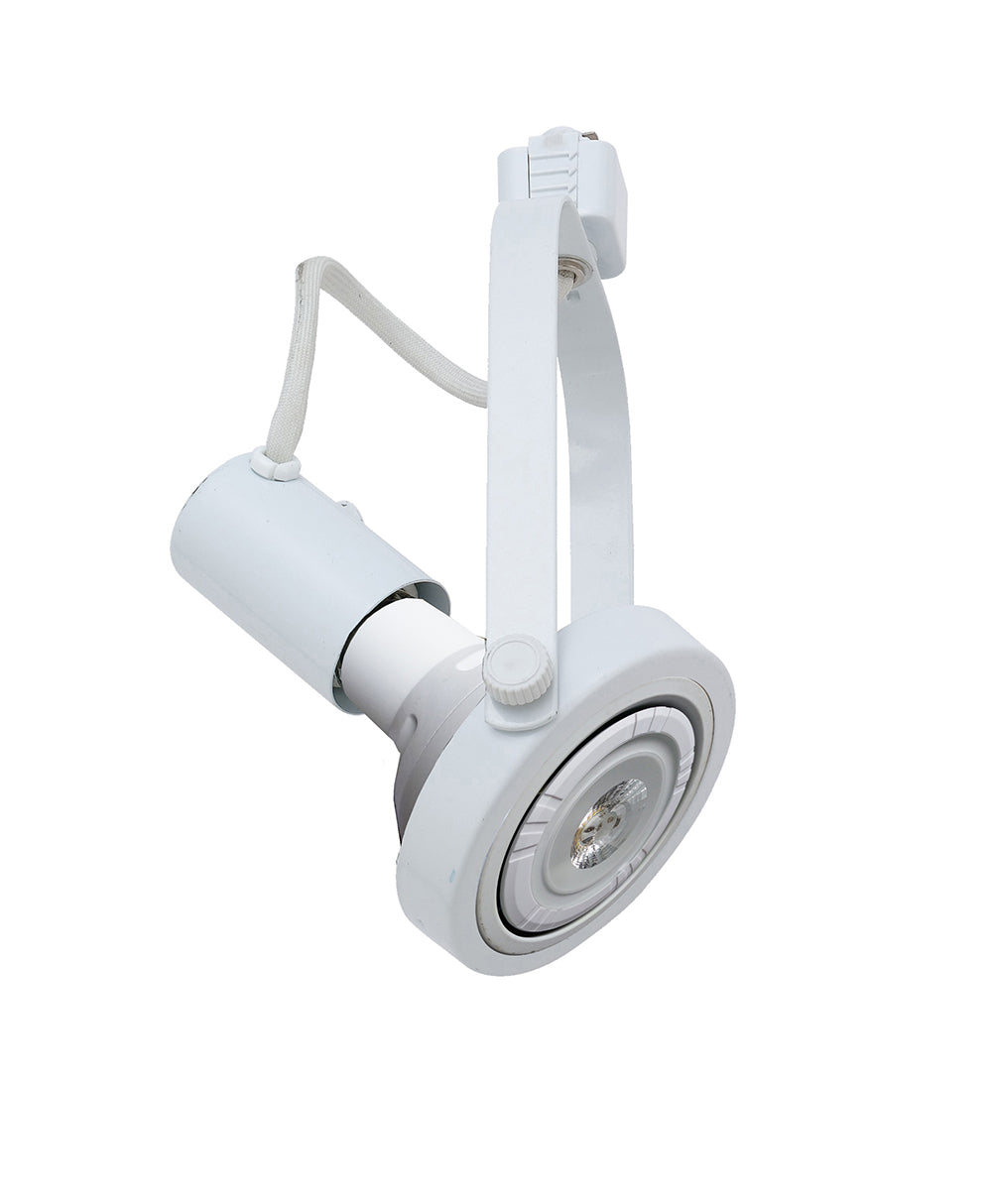

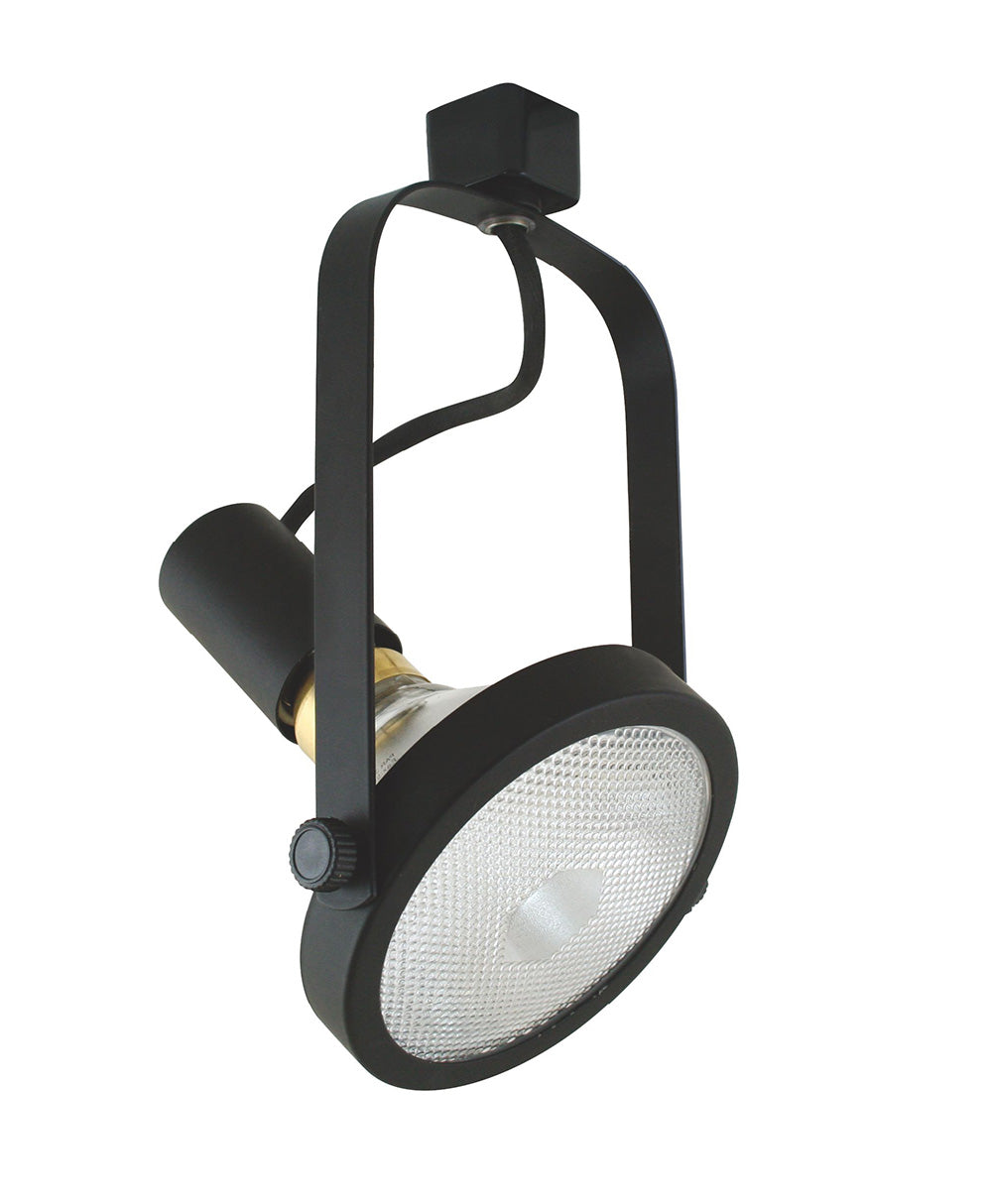

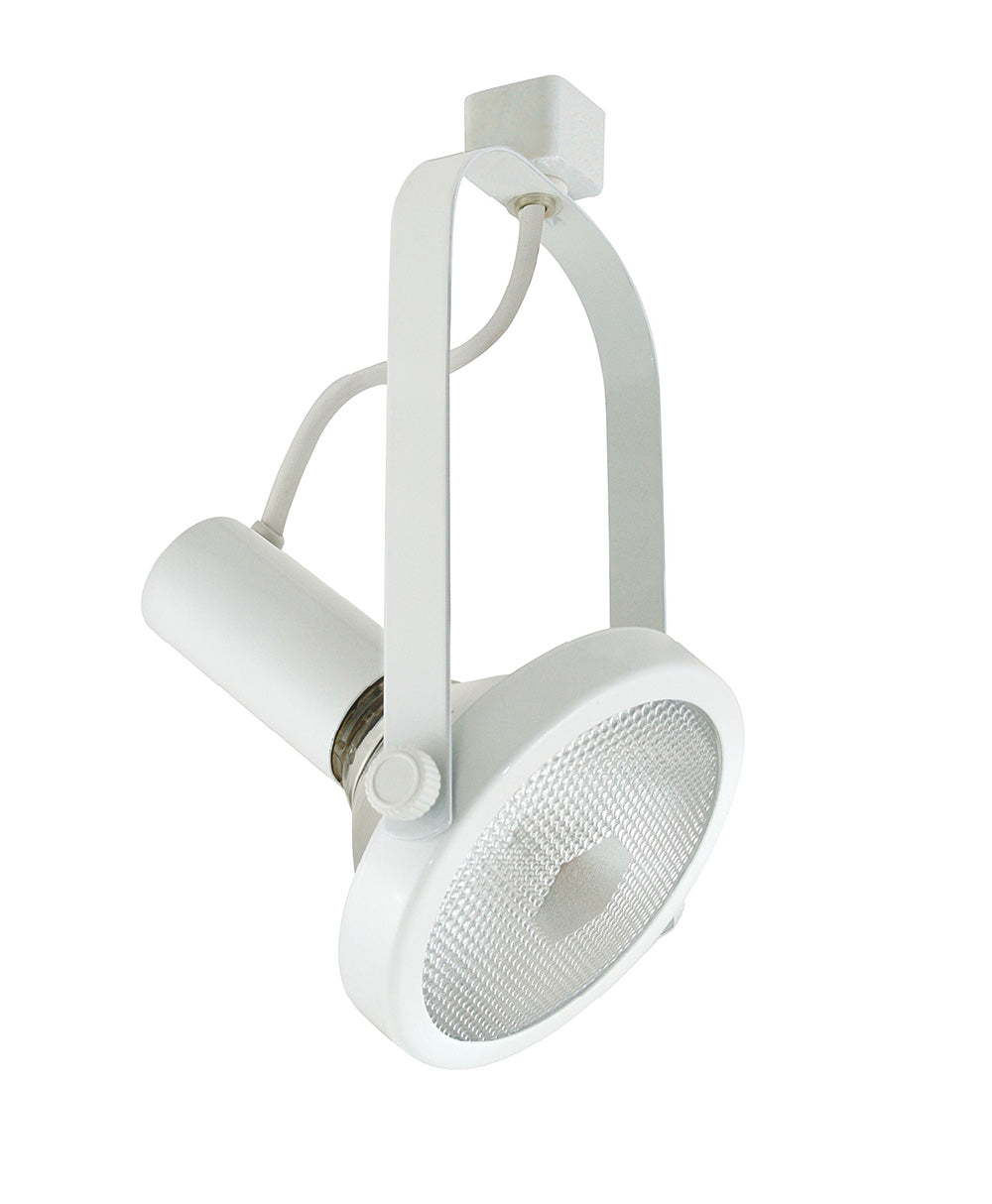

LINE VOLTAGE TRACK FIXTURES 120V HT-180L

The HT-180L Lamp Holder is a versatile solution designed for PAR38/R40 light sourcing in track fixtures. Its adjustable design allows up to 90 degrees of vertical movement and 330 degrees of rotation, providing a directional light source for precise aiming. The rear loading gimbal track fixture ensures a secure lock on the angle position.

Note:  Light Bulb and Track accessories sold separately. This track head only matching with 2 Wire HTR system tracks and track accessories.

• Adjustable up to 90 degrees from vertical and 330 degrees rotational.
• High strength stainless steel electrical contacts.
• Suitable for dry location.
• cULus listed
• Low profile, aesthetic design

Installation

• Push the top portion of the track head into the slot of the linear track section
• Turn the 2-copper conductors 90 towards the ground groove on the track section
• Rotate the adapter 90 to lock the track head into track section
• Pull down the adapter's locking tab.

HT-180L Specification Sheet
