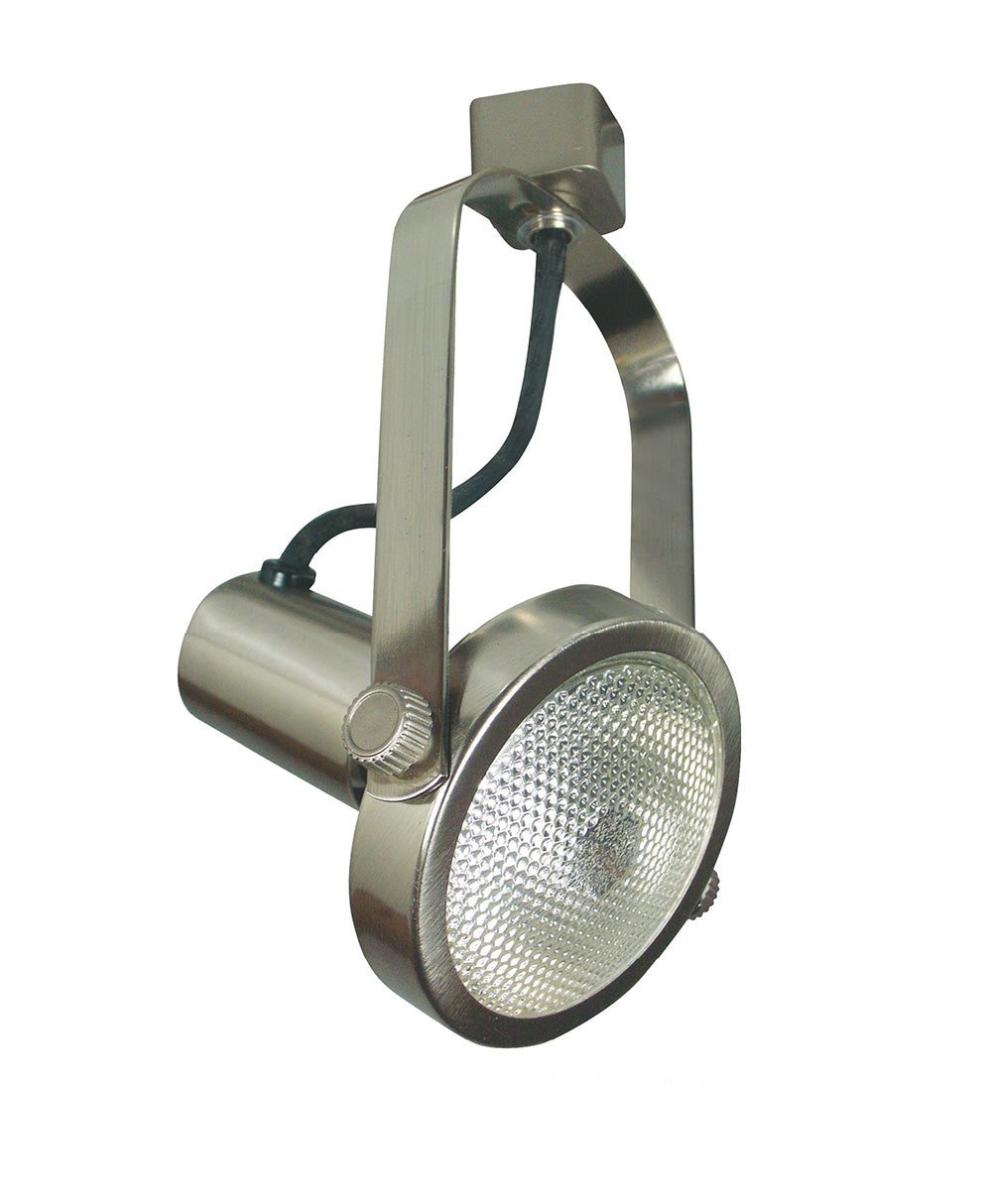

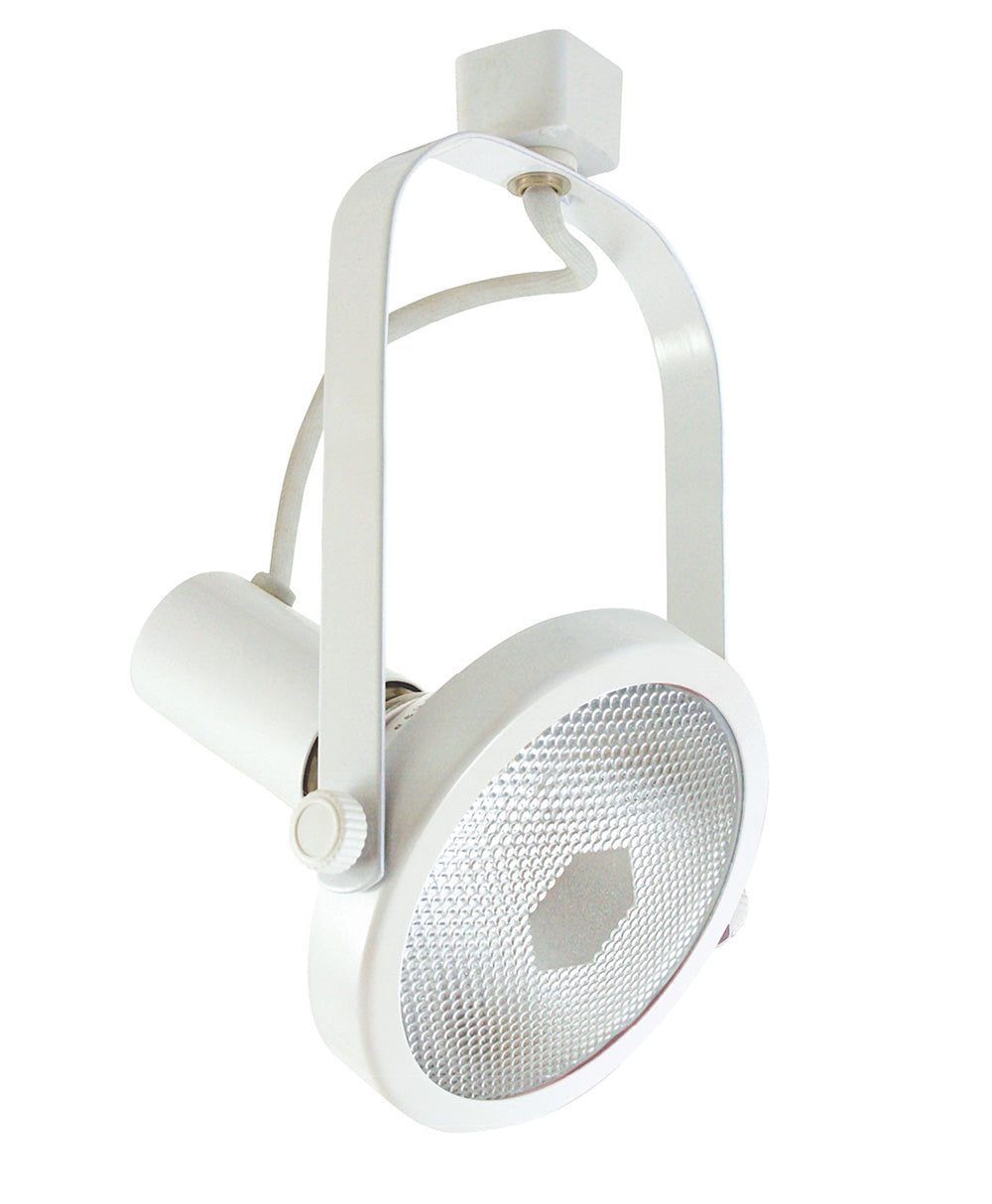

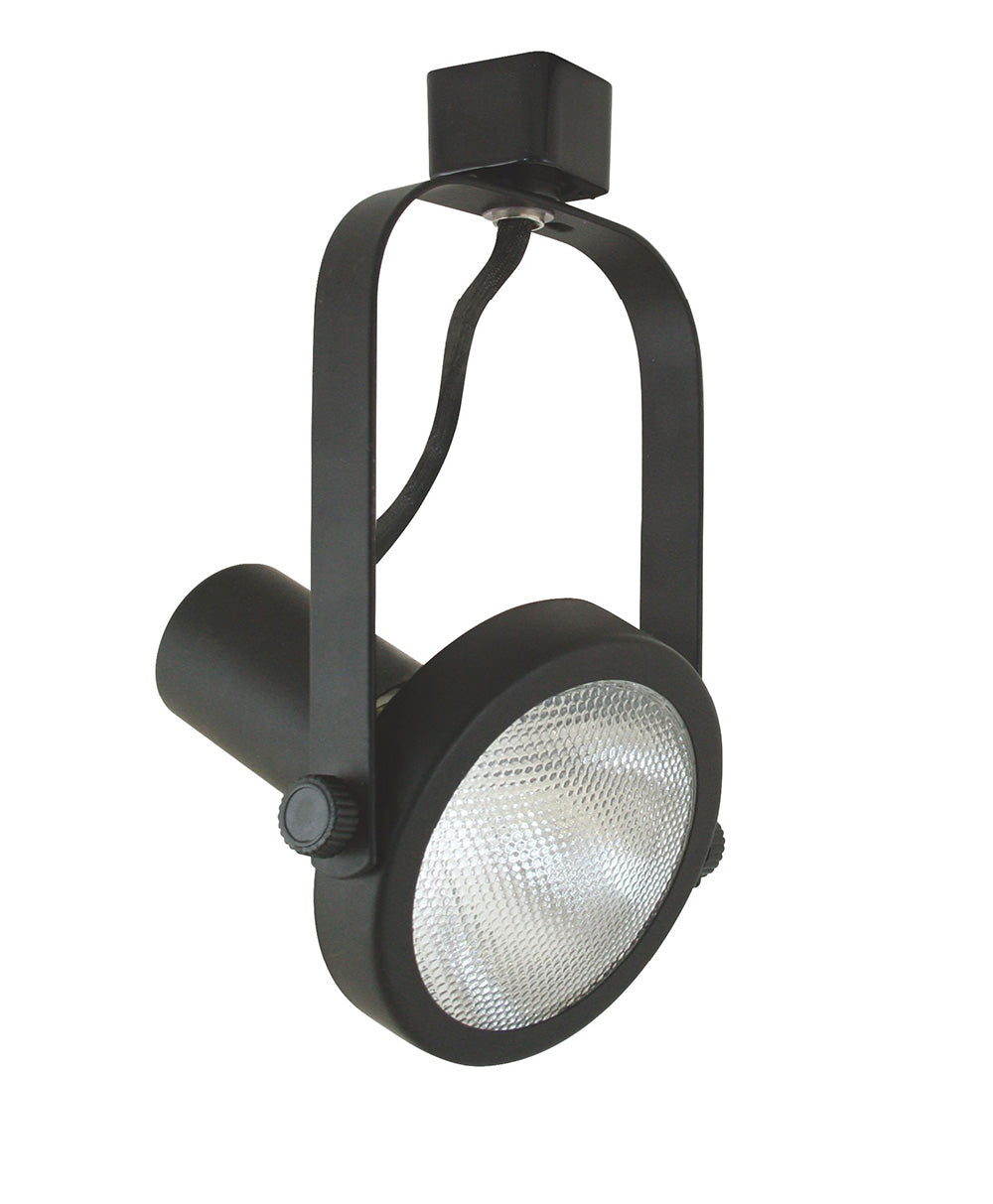

LINE VOLTAGE TRACK FIXTURES 120V - HT-181L

The HT-181L Lamp Holder is specially designed for PAR300 light sourcing, providing directional light for precise aiming. With its rear loading gimbal track fixture, it assures a secure lock on the angle position, allowing you to illuminate specific areas with ease.

Note:  Track accessories sold separately. This track head only matching with 2 Wire HTR system tracks and track accessories.

• Adjustable up to 90 degrees from vertical and 330 degrees rotational.
• High strength stainless steel electrical contacts.
• Suitable for dry location.
• cULus listed
• Low profile, aesthetic design

Installation

• Push the top portion of the track head into the slot of the linear track section
• Turn the 2-copper conductors 90 towards the ground groove on the track section
• Rotate the adapter 90 to lock the track head into track section
• Pull down the adapter's locking tab.

HT-181L Specification Sheet
